Friday, March 9, 2007

Meade Starfinder 826 with LXD-75

Thanks for the emails and since some of you guys requested a close up of the modified pier and here it is ....

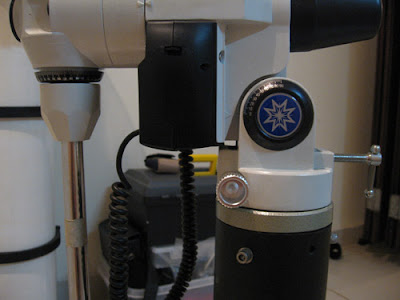

This is the side view of the mount.

The bottom, inside view of the mount.

Bottom view with the Vixen pier removed.

The tube of the pier - the smaller holes closer to the top was for the old mount. There are 3 new holes drilled for the new mount.
